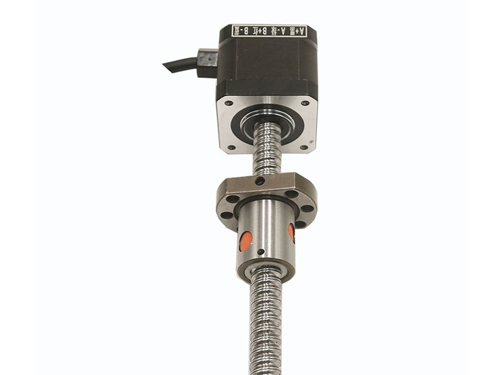

| NO。OF Phases/絲桿電機相數 | 2P | Step length/整步步長 | 0.01MM/步 |
| Step angle/絲桿電機步距角 | 1.8o ±5% | Insulation Class/絕緣等級 | B |
| Rated voltage/額定相電壓 |
4.0 V |
Working Temperature/工作溫度 | -20OC~~+50OC |
| Rated current/額定相電流 | 1.5 A | Insulation Resistance/絕緣電阻 | 100MΩ（500VDC） |
| Resistance/相電阻 | 2.7Ω | Temperature Rise/溫升 | 80K MAX。 |
| Wire rod diameter/絲桿直徑 | 8MM | Weight/電機重量 | 780g |
| Screw thread lead/絲桿螺紋導程 | 2MM | Holding torque/保持力矩 | 0.4N。M |
| Number of threads/螺紋頭數 |
3 |
Minimum thrust/最小推力 | 80N /4-40MM/S |
| Type of wire rod/絲桿種類 | 滾珠絲桿 | Wire rod material/絲桿材質 |
高碳鉻軸承鋼 |
