| NO。OF Phases/絲桿電機相數 | 2P | Step length/整步步長 |
|
| Step angle/絲桿電機步距角 | 1.8o | Insulation Class/絕緣等級 | B |
| Rated voltage/額定相電壓 |
2.5V |
Working Temperature/工作溫度 | -20OC~~+50OC |
| Rated current/額定相電流 | 2.5A |
Inertia/轉子慣量 |
450g.C㎡ |
| Resistance/相電阻 | 1.Ω20% | Temperature Rise/溫升 | 85KMAX。 |
|
Wire rod material/絲桿材質 |
不銹鋼ACME |
Weight/電機重量 | 190g |
|
Type of wire rod/絲桿種類 |
滾珠絲桿 |

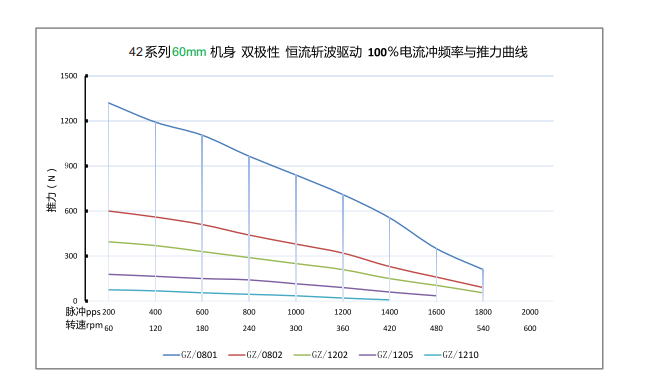

Holding torque/標準推力 | 80~120N |
| Accuracy grade/精度等級 | C7 | Minimum thrust/線性速度 | 1~10mm/s |
