技術參數/規格 |

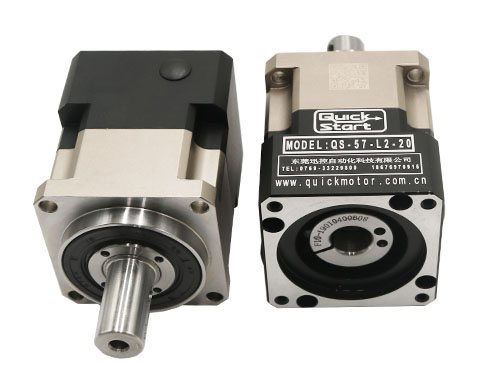

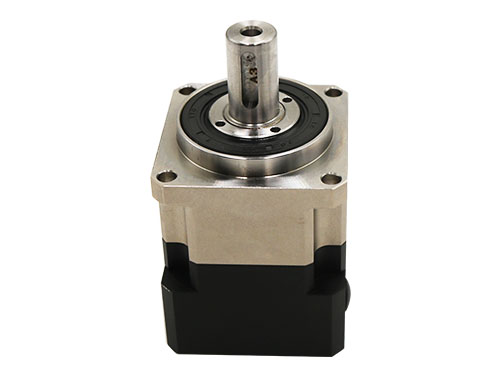

QS57/QS60 |
|||
|
最大扭矩 |
Nm |
2倍額定扭矩 |
||
|
緊急制動扭矩 |
Nm |
3倍額定扭矩 |
||
|
最大容許徑向力 |
N |
1530 |
||
|
最大容許軸向力 |
N |
600 |
||
|
抗扭剛性 |
Nm/arcmin |
6 |
||
|
最大輸入轉速 |
rpm |
8000 |
||
|
額定輸入轉速 |
ram |
4000 |
||
|
噪音 |
dB |
≤58 |
||
|
平均壽命 |
h |
20000 |
||
|
滿載效率 |
% |
L1≥97% L2≥94% |
||
|
回城間隙 |
P0 |
L1 |
arcmin |
≤3 |
|
L2 |
arcmin |
≤5 |
||
|
轉動慣量 |
L1 |
3 |
Kg.c㎡ |
0.23 |
|
4 |
Kg.c㎡ |
0.18 |
||
|
5 |
Kg.c㎡ |
0.17 |
||
|
6 |
Kg.c㎡ |
/ |
||
|
7 |
Kg.c㎡ |
0.14 |
||
|
8 |
Kg.c㎡ |
/ |
||
|
9 |
Kg.c㎡ |
0.14 |
||
|
10 |
Kg.c㎡ |
0.14 |
||
|
L2 |
15 |
Kg.c㎡ |
0.17 |
|
|
20 |
Kg.c㎡ |
0.17 |
||
|
25 |
Kg.c㎡ |
0.03 |
||
|
30 |
Kg.c㎡ |
0.03 |
||
|
35 |
Kg.c㎡ |
0.03 |
||
|
40 |
Kg.c㎡ |
0.03 |
||
|
45 |
Kg.c㎡ |
0.03 |
||
|
50 |
Kg.c㎡ |
0.03 |
||
|
60 |
Kg.c㎡ |
0.03 |
||
|
70 |
Kg.c㎡ |
0.03 |
||
|
90 |
Kg.c㎡ |
0.03 |
||
|
100 |
Kg.c㎡ |
0.03 |
||
